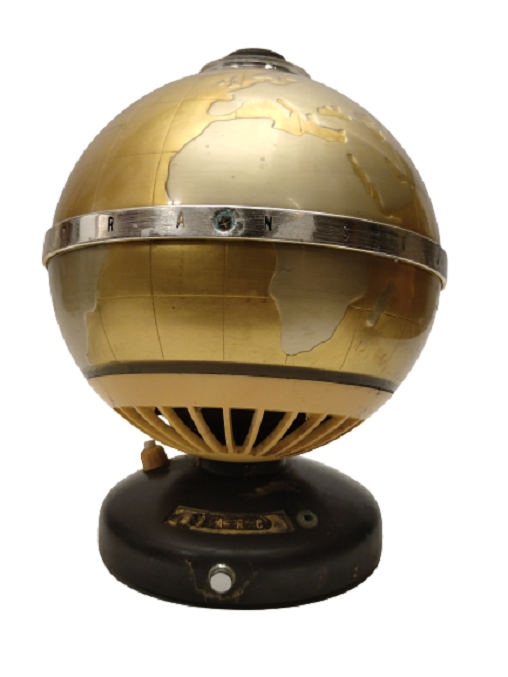

JAPON 1970 MARC GLOBE AM RADIO DÜNYA KÜRE ŞEKLİNDE TEK DALGA RADYO

‹

›

‹

›

1970 MARC GLOBE AM RADIO DÜNYA KÜRE ŞEKLİNDE TEK DALGA RADYO

Country:

Manufacturer / Brand:

Marc; Japan

Year: 1965 ?

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

8: 2SA268 2SA269 2SA269 2SA269 2SB32 2SB33 2SB33 2SB33

Main principle	Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits	5 AM circuit(s)
Wave bands	Broadcast and Short Wave (SW).
Details

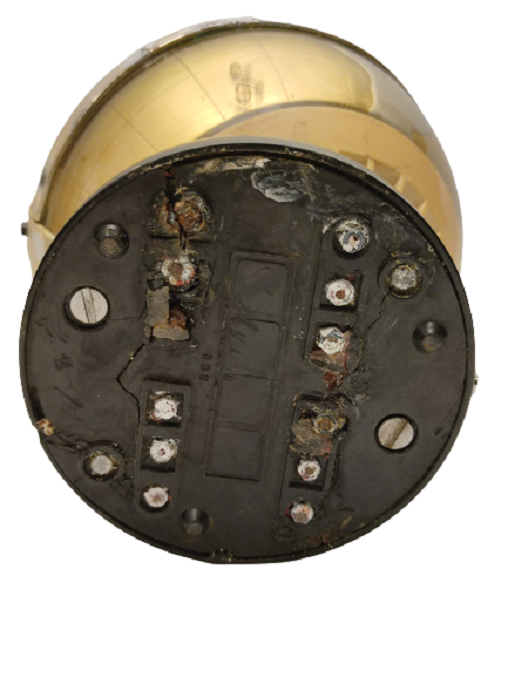

Power type and voltage	Dry Batteries / AA: 6 x 1.5 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org	Model: Globe Radio AM/SW NTR 8G - Marc; Japan
Material	Various materials
Shape	Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD)	170 x 210 x 170 mm / 6.7 x 8.3 x 6.7 inch
Notes	Material: Base black Bakelite, housing Plexiglas with continents molded inside the globe, reels gold plated aluminium. Made in Japan 508
Net weight (2.2 lb = 1 kg)	0.9 kg / 1 lb 15.7 oz (1.982 lb)
Literature/Schematics (1)	Photofact TSM Transistor Radio Series SAMS (TSM-63)
