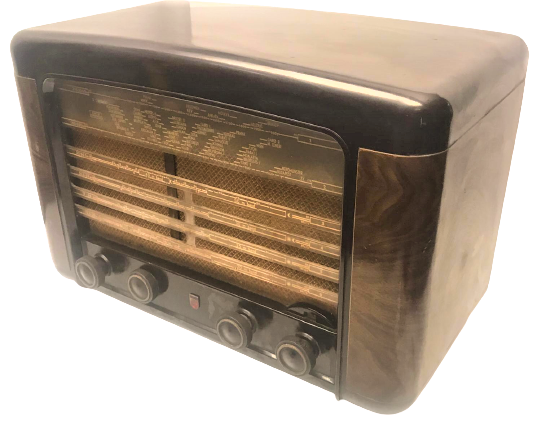

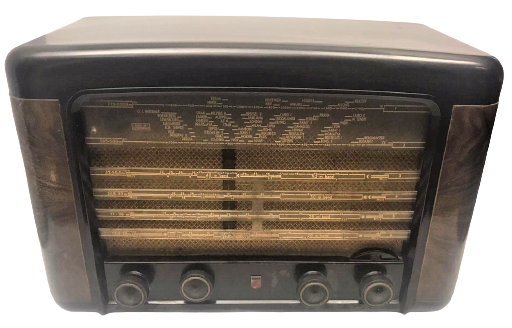

1949 YILLARIN BX490A10 PHILIPS RADYO LAMBALI BAKALİT COK TEMİZ RADIO CALIŞTIGINDA MÜTHİŞ GÖRSELE SAHİPDİR

‹

›

‹

›

1949 YILLARIN BX490A10 PHILIPS RADYO LAMBALI BAKALİT COK TEMİZ RADIO 220 VOLT 6 LAMBALI 6 KANAL TÜM TEKNİK BİLGİLER ALT TARAFDA YAZMAKTADIR

Ürün Kodu : 24222

Country:

Netherlands

Manufacturer / Brand:

Philips; Eindhoven (tubes international!); Miniwatt

Year: 1949/1950

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

6: ECH21 EAF42 EAF42 EBL21 EM34 AZ1

Main principle	Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits	6 AM circuit(s)

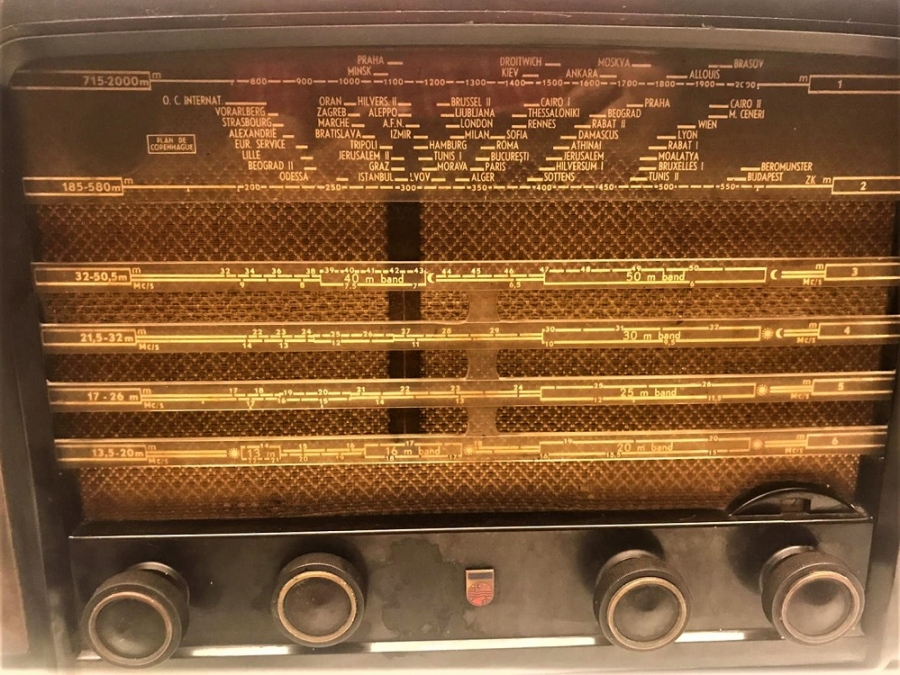

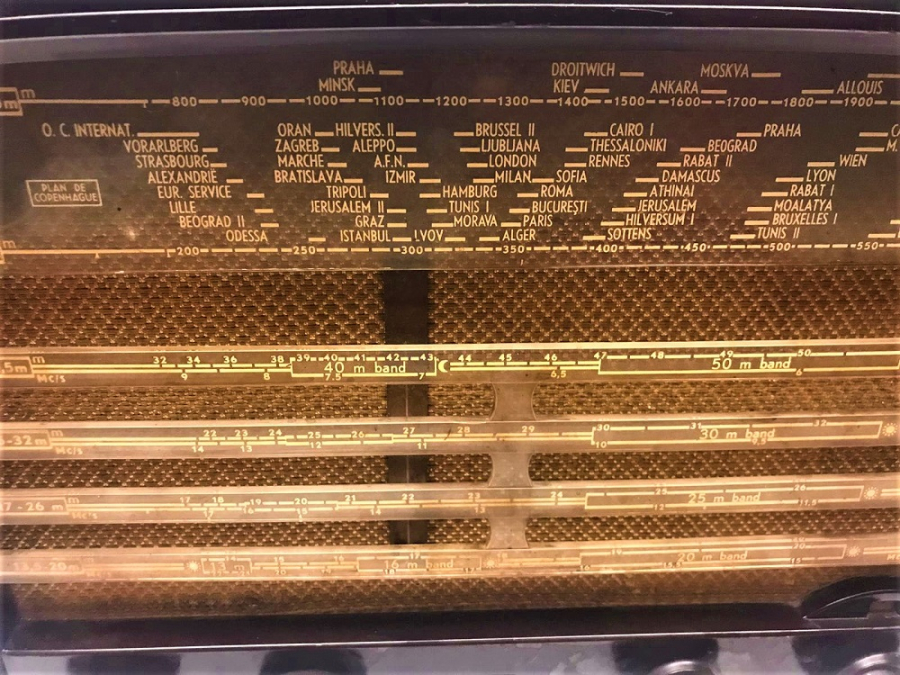

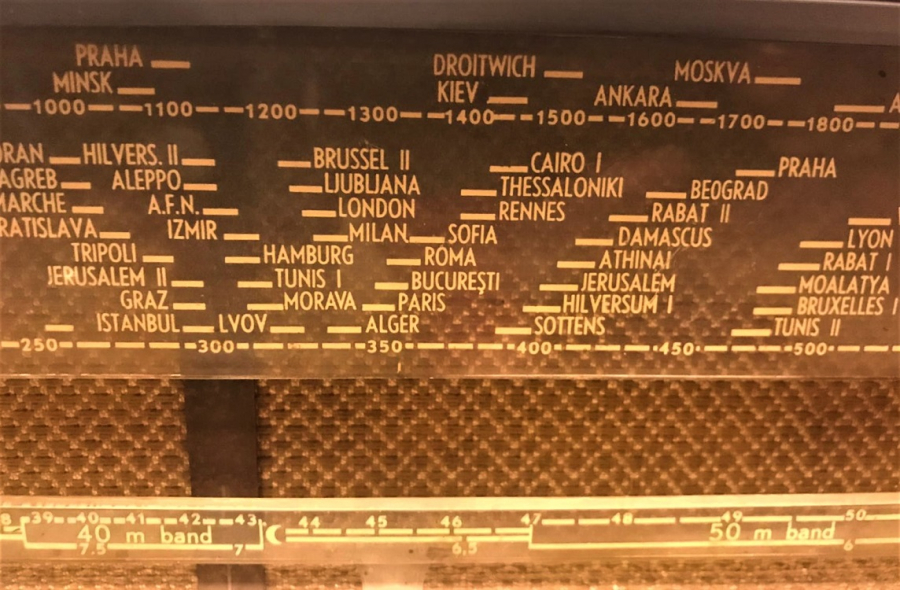

Wave bands	Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage	Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 inch = 48.3 cm
Power out	4.5 W (unknown quality)
from Radiomuseum.org	Model: BX490A - Philips; Eindhoven tubes
Material	Bakelite case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	460 x 300 x 240 mm / 18.1 x 11.8 x 9.4 inch
Notes	This radio can accomodate EAF41 as well as EAF42: see wiring diagram. AM radio for external antenna: LW: 150 - 420 kHz. BC: 517 - 1620 kHz. SW1: 5,94 - 9,38 MHz. SW2: 9,37 - 13,95 MHz. SW3: 11,54 - 17,65 MHz. SW4: 17,65 - 26,8 MHz. Loudspeaker: 9696-05 (5Ω, with soundwave diffuser). Dial lamp: 2x 8045D (E10, 6.3V/320mA).
