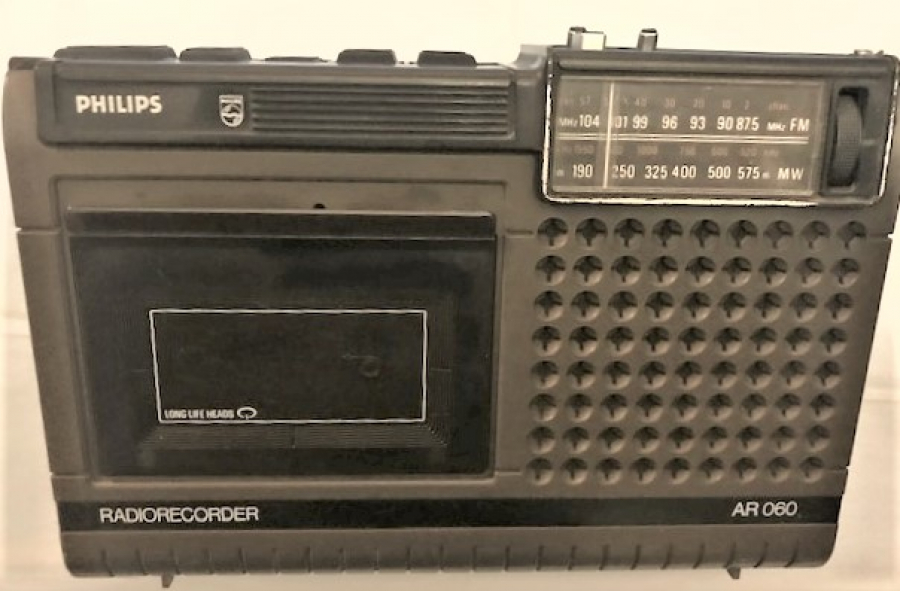

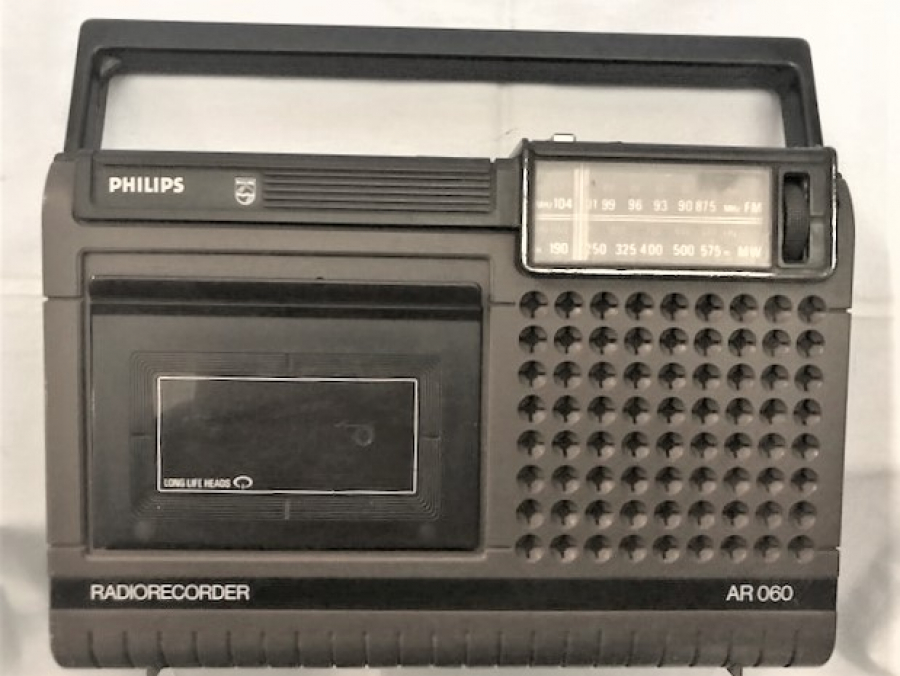

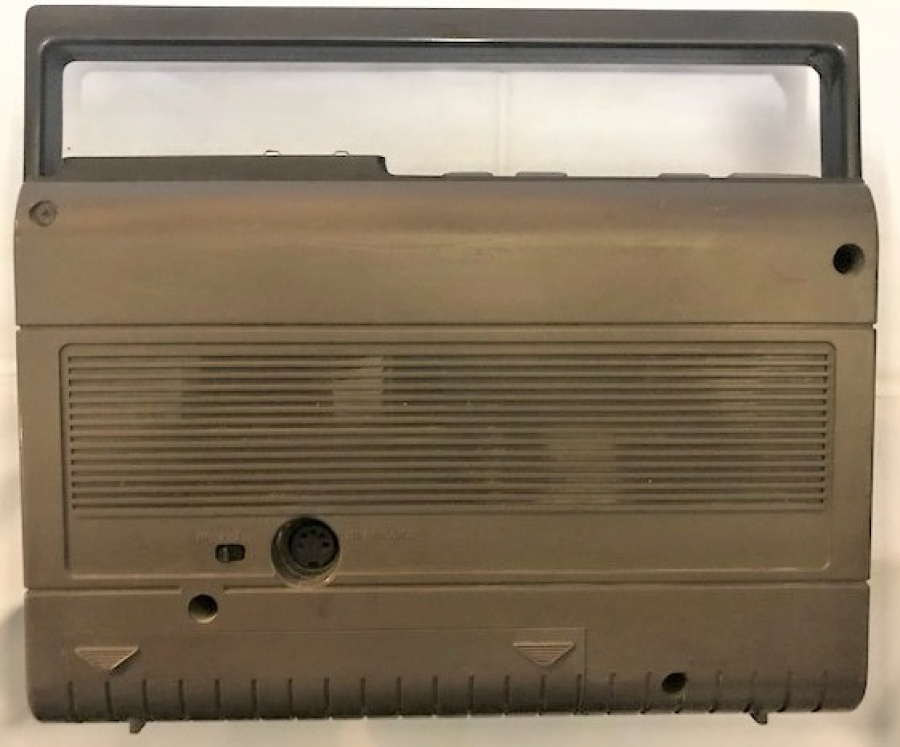

RADİO RECORDER AR 060 PİLLİ CERYANLI TAŞINABİLİR PHILIPS RADYO TEYP ALTTA TEKNİK BİLGİLERİ YAZMAKTADIR
Ürün Kodu : 22686
Stock: 1
|
|
||||
| Year: 1977 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 9: BF494 BF495 BF495 BC548 BC548 BC549 BC548 BC548 BC548 TBA120 TBA820 TCA900 1N4002 1N4148 BA315 BA316 BZX75 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | Cassette-Recorder or -Player |
| Power type and voltage | Line / Batteries (any type) / 220 / 6 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch |
| Power out | 1 W (unknown quality) |
| from Radiomuseum.org | Model: Radio-Recorder AR 060 22AR060 /00 - Philips - Österreich |
| Material | Modern plastics (no Bakelite or Catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 240 x 160 x 65 mm / 9.4 x 6.3 x 2.6 inch |
| Notes |
Radiorecorder 22AR060/00 |
